Projects
Sewage Treatment Plant (STP)/Domestic Wastewater Treatment Plant
Design & Engineering services for a 350 KLD Sewage Treatment Plant based on MBBR Technology for Government Medical College, Badaun, Uttar Pradesh.
Industry Type : Health care
Technology : Moving Bed Biofilm Reactor (MBBR)
Performance :
SS < 50 mg/l, BOD < 20 mg/l, COD < 100 mg/l, TN < 10 mg/l, FC < 200 MPN/100 ml

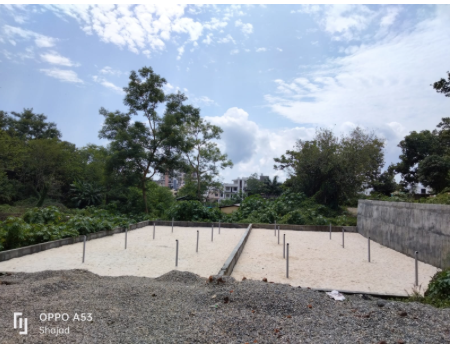

Design & Engineering services for a 1000 KLD (1 MLD) Sewage Treatment Plant based on Nature-Based Solution for the Indo-Tibetan Border Police (ITBP), Dehradun, Uttarakhand.
Industry Type : Institutional / Government Establishment
Technology : Nature Based Solution (NBS) STP
Performance :
SS < 20 mg/l, BOD < 20 mg/l, COD < 50 mg/l, FC < 200 MPN/100 ml
Design & Engineering services for a 700 KLD STP with UF System based on MBBR + UF for a Residential Housing Complex at Greated Noida, Uttar Pradesh
Industry Type : Residential
Technology : Moving Bed Biofilm Reactor (MBBR) and Ultra-filtration (UF)
Performance :
SS < 10 mg/l, BOD < 20 mg/l, COD < 30 mg/l, TKN < 10 mg/l FC < 100 MPN/100 ml
Sewage Reuse :
Landscaping and maintenance of waterbody at premises
Design & Engineering services for a 1300 KLD (1.3 MLD) STP based on SBR Technology, Uttar Pradesh
Industry Type : Residential
Technology : Sequencing Batch Reactor (SBR)
Performance :
SS < 10 mg/l, BOD < 10 mg/l, COD < 50 mg/l, TN < 10 mg/l FC < 100 MPN/100 ml
Consultancy services for 100 KLD STP based on FMR technology for Aarti Surfactants Limited, Silvassa - Dadra & Nagar Haveli
Industry Type : Chemical Industry
Technology : Fludized Media Reactor (FMR)
Performance :
SS < 20 mg/l, BOD < 20 mg/l, COD < 50 mg/l FC < 230 MPN/100 ml
Design & Engineering consultancy for a 7500 KLD (7.5 MLD) Main Pumping Station & 2500 KLD (2.5 MLD) Municipal STP based on SBR Technology, Punjab.
Industry Type : Municipal
Technology : Sequencing Batch Reactor & Chlorine Gas Disinfection
Performance :
SS < 10 mg/l , BOD < 10 mg/l, COD < 50 mg/l, FC < 100 MPN/100 ml, TN < 10 mg/l
Design & Engineering consultancy for a 1000 KLD (1 MLD) Municipal STP based on DEWATS for Gajraula Nagar Palika, Uttar Pradesh
Industry Type : Municipal
Technology : Decentralised Waste Water Treatment System (DEWATS)
Performance :
SS < 50 mg/l , BOD < 20 mg/l, COD < 150 mg/l, FC < 230 MPN/100 ml
Effluent Treatment Plants (ETP) / Industrial Wastewater Treatment Plant/Common Effluent Treatment Plants (CETP)
Design & Engineering consultancy for a 600 KLD Conventional ETP, Bulandshahr, Uttar Pradesh.
Industry Type : Textile
Technology : Physico-chemical pretreatment (coagulation–flocculation–tube settling), activated sludge process and tertiary filtration through pressure sand and activated carbon
Influent Parameters :
pH : 6 – 9, TSS : 800 – 1000 mg/l , O&G : 35 – 50 mg/l, BOD : 600 – 700 mg/l,
COD : 900 – 1000 mg/
Performance :
TSS < 50 mg/l, O&G < 10 mg/l, BOD < 30 mg/l, COD < 200 mg/l
Consultancy services for 2800 KLD (2.8 MLD) ETP based on Physico-Chemical & Activated Sludge Process for a Frozen Food Industry, Uttar Pradesh.
Industry Type : Frozen Foods
Technology : Rotary Screening, Oil Seperation, Equalization, Physico-chemical pretreatment (coagulation-flocculation–clarification), followed by dual-stage extended aeration process and tertiary filtration through PSF and ACF
Influent Parameters :
TSS : 2000 – 3000 mg/l , O&G : 350 – 400 mg/l, BOD : 3000 – 4000 mg/l,
COD : 6000 – 8000 mg/l
Performance
TSS < 100 mg/l, O&G < 10 mg/l, BOD < 25 mg/l, COD < 200 mg/l
Design & Engineering services for Upgradation of a 400 KLD ETP for a Dairy Industry, Bulandshahr, Uttar Pradesh
Industry Type : Dairy & Milk Processing
Technology : Upgraded with physico-chemical polishing using Dissolved Air Floatation (DAF) for efficient removal of suspended solids and oils & fats, Activated Carbon Filtration for organics and color removal, with sludge dewatering implemented through Screw Press to achieve high solids concentration for safe disposal
Influent Parameters :
pH : 6 – 9, TSS : 600 – 800 mg/l , O&G : 300 – 450 mg/l
Performance :
TSS > 90 % Removal, Oil & Fats > 85 % Removal
Design & Engineering services for a 400 KLD Packaged ETP for a Textile Industry, Ghaziabad, Uttar Pradesh
Industry Type : Textile
Technology : Physico-chemical pretreatment (coagulation–flocculation–settling), dual-stage attached biological process and tertiary filtration through pressure sand and activated carbon filters
Influent Parameters :
TSS – 1000 mg/l , BOD – 800 mg/l, COD – 1200 mg/l
Performance :
TSS < 50 mg/l, O&G < 10 mg/l, BOD < 25 mg/l, COD < 200 mg/l
Adequacy report and upgradation/process optimization for a 1750 KLD ETP, Moradabad, Uttar Pradesh.
Industry Type : Sugar Manufacturing
Technology : Physico-chemical pretreatment (pH neutralization-coagulation-flocculation–clarification), followed by dual-stage extended aeration process and tertiary filtration through PSF and ACF
Influent Parameters :
pH : 4 – 6, TSS : 400 – 700 mg/l , O&G : 50 – 80 mg/l, BOD : 2000 – 4000 mg/l,
COD : 3500 – 5000 mg/l
Performance
TSS < 100 mg/l, O&G < 10 mg/l, BOD < 30 mg/l, COD < 200 mg/l
Design & Engineering services for a 100 KLD Packaged ETP with specialized Color Removal Unit for a Textile Industry, Bulandshahr, Uttar Pradesh
Industry Type : Textile
Technology : Physico-chemical pretreatment (coagulation–flocculation–settling), dual-stage MBBR biological process and tertiary filtration through pressure sand, activated carbon filters and color removal unit
Influent Parameters :
TSS – 900 mg/l , BOD – 750 mg/l, COD – 1160 mg/l
Performance
TSS < 50 mg/l, O&G < 10 mg/l, BOD < 20 mg/l, COD < 150 mg/l
Design & Engineering consultancy for a 800 KLD ETP based on PC + UASB + ASP + Filtration for a Milk Processing Industry, Baghpat, Uttar Pradesh.
Industry Type : Milk Processing
Technology : Physico-chemical pretreatment (coagulation–flocculation–tube settling), Upflow Anaerobic Sludge Blanket Reactor (UASB), activated sludge process and tertiary filtration through pressure sand and activated carbon filters
Influent Parameters :
pH : 6 – 9, TSS : 600 – 1000 mg/l , O&G : 150 – 200 mg/l, BOD : 1000 – 1700 mg/l,
COD : 1800 – 3500 mg/l
Performance :
TSS < 50 mg/l, O&G < 10 mg/l, BOD < 30 mg/l, COD < 200 mg/l
Design & Engineering services for a 50 KLD ZLD Plant for a Biofuel Industry, Bulandshahr, Uttar Pradesh
Industry Type : Chemical
Technology : Physico-chemical pretreatment (Screening, Acidification, oxidation, coagulation, flocculation, settling), followed by attached biofilm reactor process, activated sludge process and tertiary filtration through PSF and ACF. Ultra-filtration followed by three-stage Reverse Osmosis and evaporation of RO reject to achieve Zero Liquid Discharge (ZLD)
Influent Parameters :
pH : 1 – 3, TSS : 400 – 800 mg/l , O&G : 2000 – 3000 mg/l,
BOD : 25,000 – 40,000 mg/l, COD : 45,000 – 90,000 mg/l, TDS : 4000 – 6000 mg/l
Performance
TSS < 5 mg/l, O&G < 2 mg/l, BOD < 5 mg/l, COD < 10 mg/l, TDS < 500 mg/l
Design & Engineering consultancy for a 1200 KLD (1.2 MLD) Effluent Treatment Plant for a Paper Industry, Patna, Bihar
Industry Type : Paper Mill
Technology : Screening, dissolved air flotation with chemical dosing, activated sludge process and tertiary filtration through pressure sand and activated carbon filters Sludge dewatering through decanter centrifuge
Influent Parameters :
pH : 5 – 9, TSS : 1200 – 1800 mg/l , O&G : 50 – 80 mg/l, BOD : 1200 – 2000 mg/l,
COD : 3000 – 4500 mg/l
Performance :
TSS < 50 mg/l, O&G < 10 mg/l, BOD < 30 mg/l, COD < 200 mg/l
Design & Engineering consultancy for a 660 KLD Wastewater Treatment & Recycling Plant for a Glass Industry
Industry Type : Glass Industry
Technology : Preliminary and primary treatment to remove solids, oil & grease and color, followed by aerobic biological treatment for organic load reduction. Advanced tertiary treatment comprising filtration, ultrafiltration and two-pass reverse osmosis ensures high-quality permeate. Final polishing through a mixed bed DM plant enables high-purity water reuse.
Influent Parameters :
pH : 5 – 8, TSS : 200 – 500 mg/l , O&G : 20 – 30 mg/l, BOD : 300 – 400 mg/l,
COD : 500 – 800 mg/l
Performance
TSS < 0 mg/l, O&G < 0 mg/l, BOD < 0 mg/l, COD < 0 mg/l, TDS < 0 mg/l
Design & Engineering services for a 50 KLD Zero Liquid Discharge (ZLD) Plant based on UF + Multi-Stage RO + Evaporator, Madhya Pradesh.
Industry Type : Chemical
Technology : Ultra-filtration followed by three-stage Reverse Osmosis and evaporation of RO reject to achieve Zero Liquid Discharge (ZLD)
Influent Parameters :
pH : 6 – 8, TSS : 80 – 100 mg/l , O&G : 05 – 10 mg/l,
BOD : 25 – 50 mg/l, COD : 200 – 250 mg/l, TDS : 4000 – 5000 mg/l
Performance
TSS < 1 mg/l, O&G < NIL, BOD < 5 mg/l, COD < 5 mg/l, TDS < 200 mg/l
Design & Engineering services for a 50 KLD Effluent Treatment Plant, Madhya Pradesh.
Industry Type : Chemical
Technology : Screens, coagulation, flocculation, tube settler, two stage biological process, secondary settler, tertiary filtration (PSF & ACF)
Influent Parameters :
pH : 6 – 8, TSS : 800 – 1000 mg/l , BOD : 1500 – 2000 mg/l, COD : 3000 – 5000 mg/l,
Performance :
TSS < 50 mg/l, O&G < 10 mg/l, BOD < 30 mg/l, COD < 250 mg/l
Design & Engineering consultancy for a 50 KLD Leachate Treatment Plant based on Anaerobic + EC + MBBR, Uttar Pradesh.
Industry Type : Solid Waste
Technology : Screening, oil skimmer, anaerobic reactor, electro-coagulation, tube settler, aerobic attached biological reactor, secondary settler, filter feed tank, pressure sand filter, activated carbon filter, disinfection
Influent Parameters :
pH : 4 – 8, TSS : 900 – 1500 mg/l , BOD : 6000 – 9000 mg/l,
COD : 18000 – 25000 mg/l,
Performance
TSS < 50 mg/l, O&G < 10 mg/l, BOD < 30 mg/l, COD < 250 mg/l
Design & Engineering consultancy for a 150 KLD ETP + ZLD System for a Biofuel Industry, Andhra Pradesh
Industry Type : Biofuel Production
Technology : Screens, Acidification, coagulation, flocculation, tube settler, advance oxidation process, two stage biological process, secondary settler, tertiary filtration, multi effect evaporator, agitated thin film dryer
Influent Parameters :
pH : 3 – 5, TSS : 150 – 300 mg/l , O&G : 50 – 60 mg/l, BOD : 55000 – 65000 mg/l,
COD : 125000 – 145000 mg/l, TDS : 55000 – 60000 mg/l
Performance :
TSS < 10 mg/l, O&G < 1 mg/l, BOD < 10 mg/l, COD < 50 mg/l, TDS < 2000 mg/
Design & Engineering consultancy for a Ballasted Sand Flocculation System (1000 KLD), Uttarakhand.
Industry Type : Industrial Research
Technology : Ballasted Sand Flocculation Plant
Performance :
TSS > 80 % Removal,
BOD > 40 % Removal,
COD > 40 % Removal,
TP > 80 % Removal
Design & Engineering consultancy for a 1500 KLD ETP + ZLD System for a Food Processing Industry Maharashtra
Industry Type : Food Processing Unit
Technology : Screening, oil skimmer, DAF Unit, UASB Reactor, MBBR I & II, tube settler, MGF, ACF, UF, RO I, RO II, RO III, Multi Effect Evapotrator
Influent Parameters :
pH : 6 – 8, TSS : 600 – 1000 mg/l , BOD : 1500 – 3000 mg/l, COD : 4000 – 6000 mg/l,
Performance
TSS < 1 mg/l, O&G < NIL, BOD < 1 mg/l, COD < 5 mg/l, TDS < 300 mg/l
Water Treatment Plants (WTP / UF/RO)

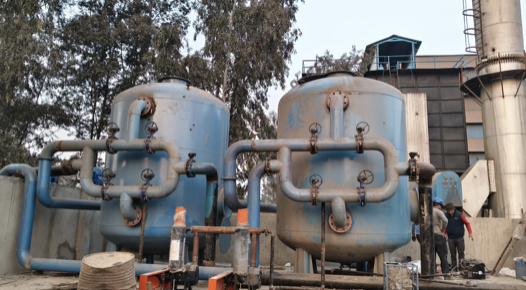

Design & Engineering consultancy for a 7200 KLD (7.2 MLD) Water Treatment Plant for a Steel Industry, Bulandshahr, Uttar Pradesh.
Industry Type : Steel
Technology : Pressure Sand Filter (PSF) to remove residual suspended solids, turbidity and particulate impurities
Influent Parameters :
SS – 50 mg/l, Turbidity – 30 NTU
Performance
SS < 10 mg/l , Turbidity < 10 NTU
Design & Engineering consultancy for a 400 KLD RO based Water Treatment Plant, Haryana.
Industry Type : Metal Processing
Technology : Reverse Osmosis
Influent Parameters :
TDS – 2500 mg/l
Performance
TDS < 100 mg/l, Hardness < 20 mg/l, Recovery - 75 %
Consultancy services for a 10600 KLD (10.6 MLD) Water Treatment Plant for Water Supply Project, Odisha
Industry Type : Municipal
Technology : Integrated treatment processes including cascade aeration for degassing and oxidation, flash mixing for coagulant addition, clariflocculator for coagulation-flocculation and settling, rapid gravity sand filters for turbidity removal, chlorine contact tank for disinfection, and sludge handling through thickener and decanter centrifuge to ensure efficient sludge dewatering and disposal.
Source :
River Water
Performance
BIS Standards
Consultancy services for a 53 MLD Water Treatment Plant for Chandrapur, Maharashtra
Industry Type : Municipal
Technology : Integrated treatment processes including cascade aeration for degassing and oxidation, flash mixing for coagulant addition, clariflocculator for flocculation and settling, rapid gravity sand filters for turbidity removal, chlorine contact tank for disinfection
Source :
River Water
Performance
BIS Standards

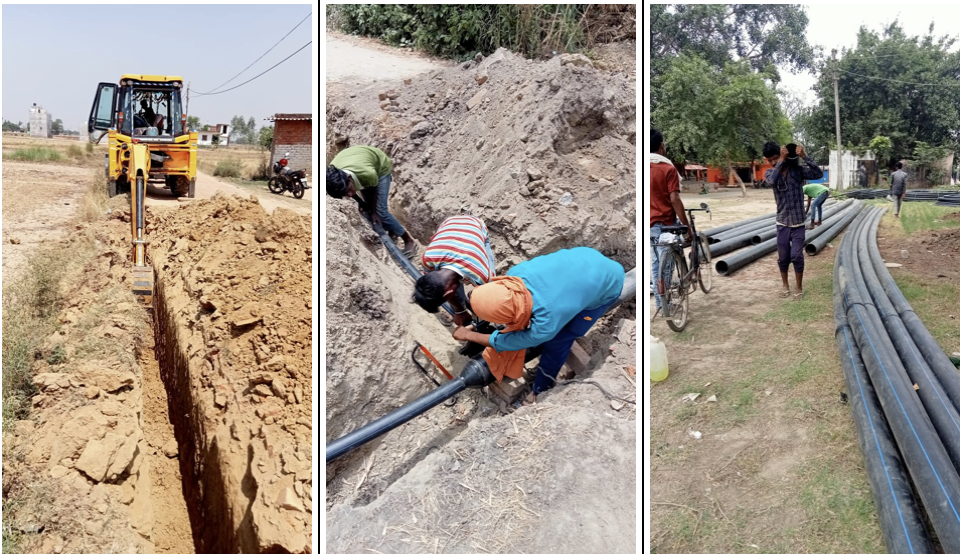

Consultancy services for water supply distribution network using HDPE pipelines, including network optimization and implementation support, at Deoria, Uttar Pradesh
Industry Type : Water Supply Network
Material :
HDPE Pipeline
International Projects
Design & Engineering consultancy for a 1600 KLD ETP based on DAF + UASB + MBR for a Slaughterhouse, Jubail, KSA.
Industry Type : Frozen Foods
Technology : Rack screen, rotary screen, oil & grease separation, equalization tank, flash mixer, flocculation unit, dissolved air flotation (DAF) system, anaerobic treatment (UASB reactor), anoxic tank, aerobic MBR tank, membrane separation (MBR) and treated water storage
Influent Parameters :
pH : 6 – 8.5, TSS : 2000 – 3000 mg/l , O&G : 300 – 400 mg/l, BOD : 3000 – 4000 mg/l,
COD : 6000 – 8500 mg/l, TKN : 350 – 450 mg/l
Performance
TSS < 10 mg/l, O&G < NIL, BOD < 10 mg/l, COD < 50 mg/l, TKN < 10 mg/l
Design & Engineering consultancy for a 350 KLD Packaged Containerized ETP based on DAF + UASB + MBR for a Rendering Industry, Jubail, KSA
Industry Type : Rendering
Technology : The wastewater treatment system incorporates preliminary screening and oil grease separation followed by equalization to stabilize hydraulic and organic loading. Primary clarification is achieved using a dissolved air flotation (DAF) system with integrated mixing and flocculation for efficient removal of suspended solids and fats. Biological treatment is provided through a combination of anaerobic (UASB) and anoxic–and aerobic (membrane bioreactor - MBR) processes to achieve substantial reduction of organic matter and nutrients, producing high-quality treated effluent suitable for reuse or compliant discharge. Generated sludge streams are thickened and mechanically dewatered for safe handling and disposal.
Influent Parameters :
pH : 6 – 8, TSS : 1200 – 1800 mg/l , O&G : 600 – 900 mg/l, BOD : 4000 – 5000 mg/l,
COD : 8000 – 12000 mg/l, TKN : 300 – 400 mg/l
Performance
TSS < 10 mg/l, O&G < NIL, BOD < 10 mg/l, COD < 50 mg/l, TKN < 10 mg/l
Consultancy services for Wastewater Treatment Plant (WWTP) for US Consulate General, Hyderabad, (Contractor - Greentech LLC, Virginia, USA)
Industry Type : Government Facility
Technology : Jet Commercial Wastewater Treatment Plant (Proprietory Technology)
Performance
TSS < 30 mg/l, COD < 50 mg/l
Design & Engineering consultancy for a Industrial Water Treatment Plant based on RO + EDI System for a Pharmaceutical Industry, Nepal
Industry Type : Pharmaceutical Industry
Technology : The wastewater treatment system incorporates preliminary screening and oil grease separation followed by equalization to stabilize hydraulic and organic loading. Primary clarification is achieved using a dissolved air flotation (DAF) system with integrated mixing and flocculation for efficient removal of suspended solids and fats. Biological treatment is provided through a combination of anaerobic (UASB) and anoxic–and aerobic (membrane bioreactor - MBR) processes to achieve substantial reduction of organic matter and nutrients, producing high-quality treated effluent suitable for reuse or compliant discharge. Generated sludge streams are thickened and mechanically dewatered for safe handling and disposal.
Influent Parameters :
pH : 7 – 8, TSS : 5 – 10 mg/l , TDS : 300 – 500 mg/l
Performance
TSS < 0 mg/l, TDS < 0 mg/l

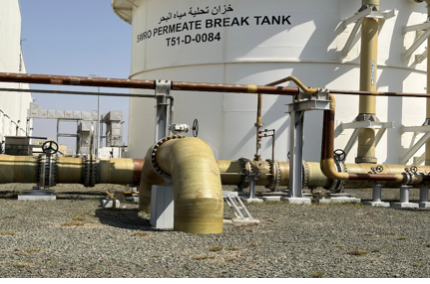

Engineering consultancy services for a 180 MLD Desalination Plant in Jazan Economic City, Jazan Province, Saudi Arabia
Industry Type : Industrial Water Supply
Technology :
◇ Pretreatment
◇ Ultrafiltration System
◇ RO Modules (Seawater Reverse Osmosis + Brackish Water Reverse Osmosis)
◇ RO Permeate Post Treatment; 5. Sludge Dewatering
◇ Waste Handling
◇ Product Water Storage 8. Bulk Chemical Handling System
Performance
As per Royal Commission Environmental Regulations (RCER)
Design & Engineering consultancy for a 1000 KLD (1 MLD) CETP based on DAF + ASP + Tertiary Filtration for a Pharma Cluster, Nepal.
Industry Type : Pharmaceutical
Technology : Screening, Chemical Treatment, DAF, Aeration Tank, Clarifier, PSF & ACF
Influent Parameters :
pH : 4 – 11, TSS : 400 – 700 mg/l , O&G : 800 – 900 mg/l, BOD : 1500 – 2500 mg/l,
COD : 4000 – 5000 mg/l
Performance
TSS < 100 mg/l, O&G < 10 mg/l, BOD < 50 mg/l, COD < 250 mg/l
Design & Engineering consultancy for a 50 KLD Leachate Treatment Plant based on Anaerobic + EC + MBBR, Uttar Pradesh.
Industry Type : Solid Waste
Technology : Screening, oil skimmer, anaerobic reactor, electro-coagulation, tube settler, aerobic attached biological reactor, secondary settler, filter feed tank, pressure sand filter, activated carbon filter, disinfection
Influent Parameters
pH : 4 – 8, TSS : 900 – 1500 mg/l , BOD : 6000 – 9000 mg/l,
COD : 18000 – 25000 mg/l,
Performance
TSS < 50 mg/l, O&G < 10 mg/l, BOD < 30 mg/l, COD < 250 mg/l
